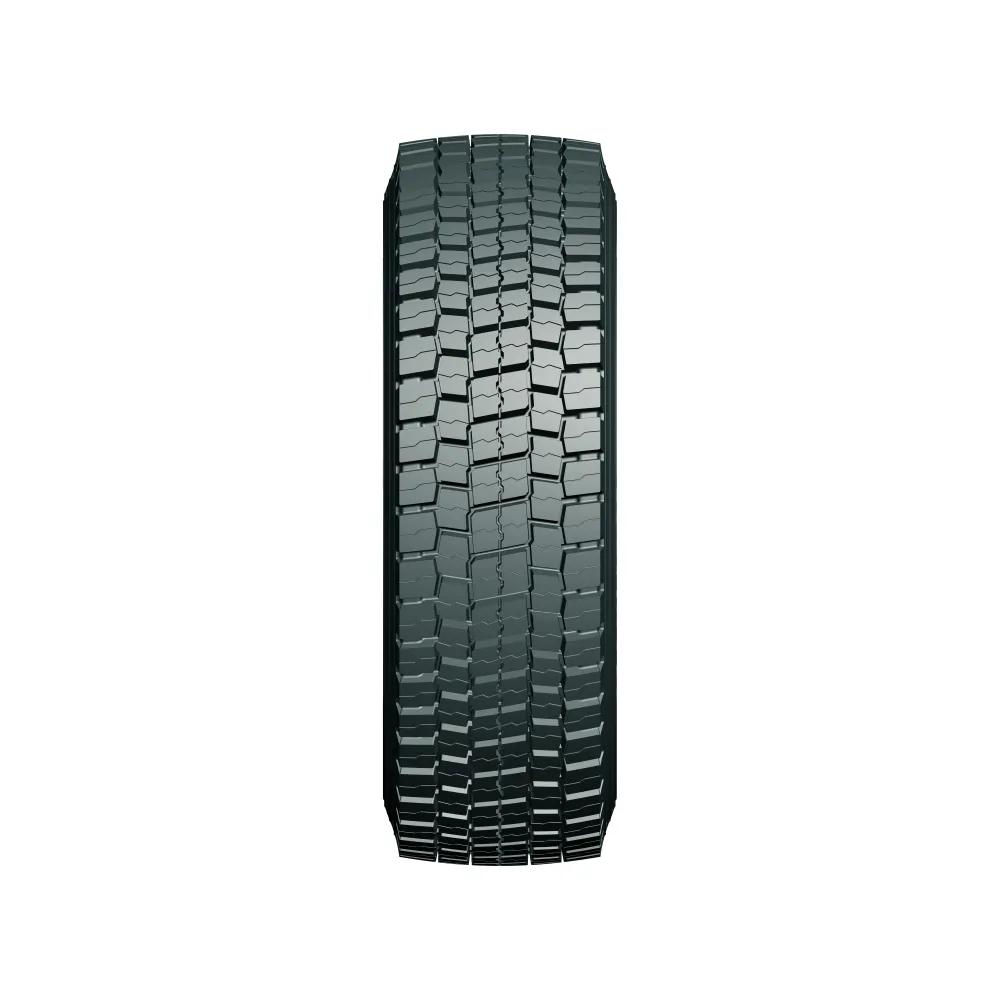

The tie-bars between the pattern blocks helps improve tread stability. Reduce heel to toe wear.
PRODUCT DESCRIPTION
The tie-bars between the pattern blocks helps improve tread stability. Reduce heel to toe wear.
Wide tread and deep main groove provide excellent mileage performance.
Optimized pattern groove angle design improves handing performance.
Full-depth horizontal grooves can quickly drain water into the main groove, improving the traction performance of the wet.
The high density transverse grooves provide sufficient traction.
ARGUMENT
| SIZE | PR/LR | LOAD INDEX/ SPEED SYMBOL | STANDARD RIM | OVERALL DIAMETER (MM/IN) | SECTION WIDTH (MM/IN) | SINGLE LOAD (KG/LBS) | DUAL LOAD (KG/LBS) | PRESSURE (KPA/PSI) | TREAD DEPTH (MM/32NDS) |
| 295/60R22.5 | 16PR | 150/147K(149/146L) | 9.00 | 926 | 292 | 3350/7390 | 3075/6780 | 900/130 | 20/25.2 |
| 295/80R22.5 | 18PR | 152/148M | 9.00 | 1044 | 298 | 3550/7830 | 3150/6940 | 850/123 | 20/25.2 |
| 315/70R22.5 | 18PR | 154/150L | 9.00 | 1014 | 312 | 3750/8270 | 3350/7390 | 900/131 | 21/26.46 |
| 315/80R22.5 | 20PR | 156/150L(154/150M) | 9.00 | 1076 | 312 | 4000/8820 | 3350/7390 | 850/123 | 21/26.46 |
